The YCW-12 is a 1.2-ton mini crawler excavator designed for contractors, rental fleets, farmers and landscapers who need strong performance in tight spaces. Equipped with a reliable 192F diesel engine and a 0.025 m³ bucket, it delivers efficient digging, loading and trenching while keeping fuel consumption low. Its compact body size of 2130 × 960 × 2250 mm allows it to easily pass through narrow passages, backyards and small construction sites, making it an ideal machine for urban jobs and light construction projects.
YCW-12 Mini Excavator
Power Type
Diesel
Power
8.6 kW
Dimensions (L × W × H)
2130 × 960 × 2250 mm
Customization
Available
Key Features
1. Powerful Compact Design – 1.2T mini excavator delivers strong digging force in a small, easy-to-transport body.
2. Agile in Tight Spaces – Short swing radius and narrow width let you work close to walls, trees and fences with confidence.
3. Reliable Low-Cost Power – Proven 192F diesel engine keeps fuel use and maintenance costs low for better profit.
2. Agile in Tight Spaces – Short swing radius and narrow width let you work close to walls, trees and fences with confidence.
3. Reliable Low-Cost Power – Proven 192F diesel engine keeps fuel use and maintenance costs low for better profit.
Technical Specifications
Operating weight
1200 kg
Engine
Kepu 192F / Koop 192F
Power
8.6 kW
Bucket capacity
0.025 m³
Machine size
2130 × 960 × 2250 mm
Max. digging depth
1650 mm
Max. digging height
2580 mm
Min. swing radius
1190 mm
Max. digging radius at groundline
2500 mm
Product Description
Compatible Accessories

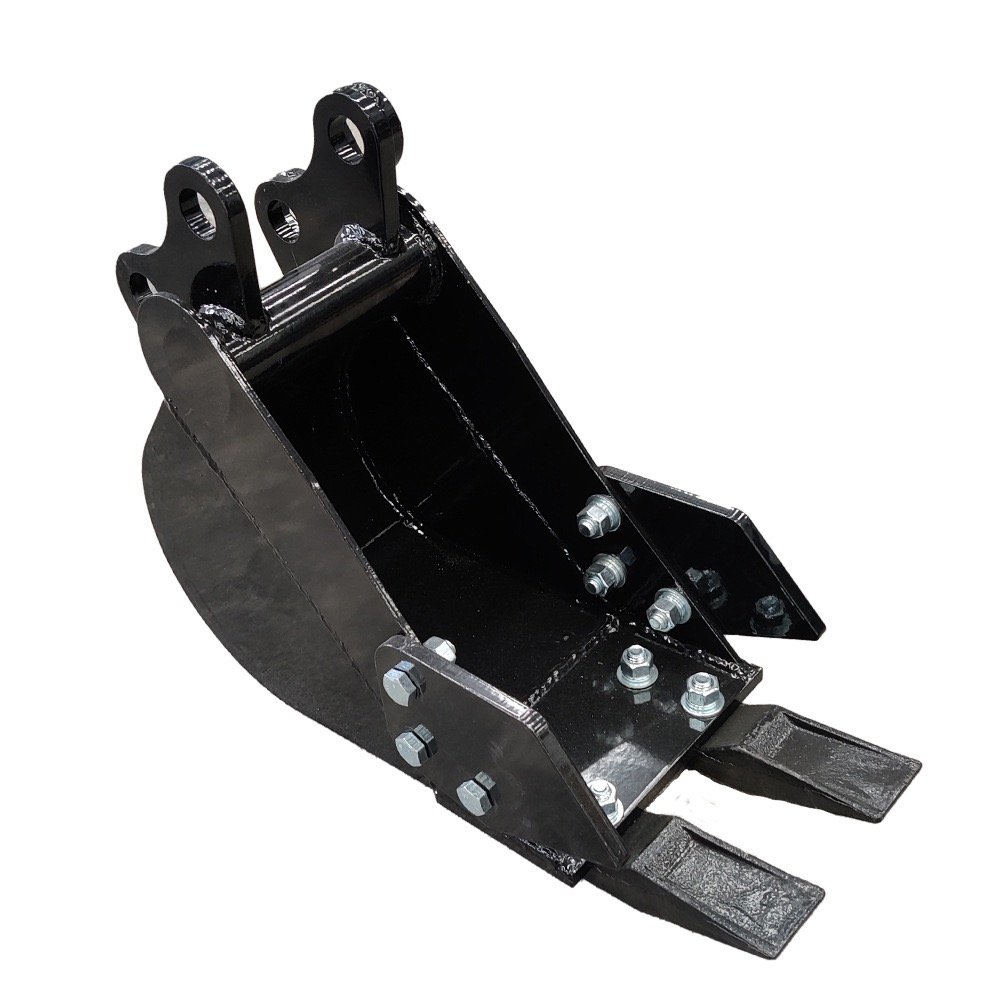

200 mm Narrow Bucket
200 mm narrow bucket for trenching in confined areas such as cable trenches and farm…
View Details →

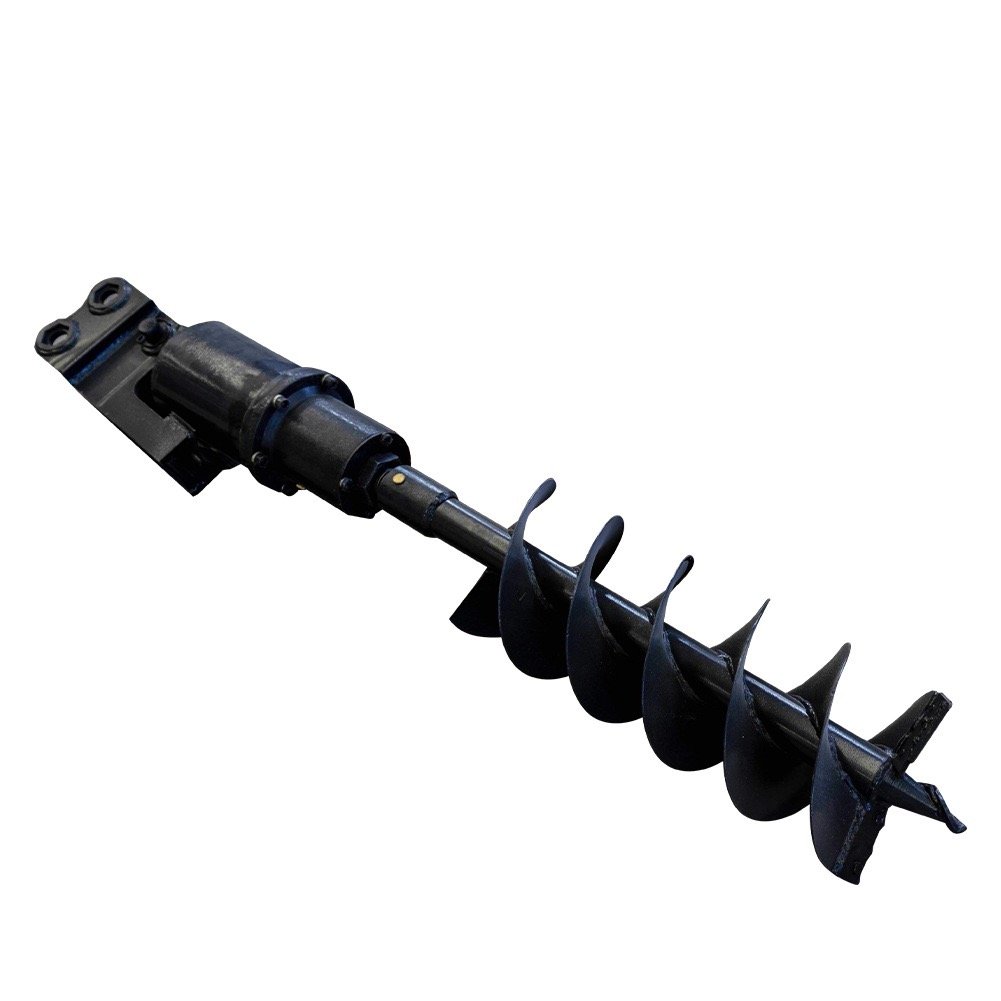

200/300 mm Auger Drill
200/300 mm auger drill for versatile hole digging, suitable for fencing, tree planting and light…
View Details →

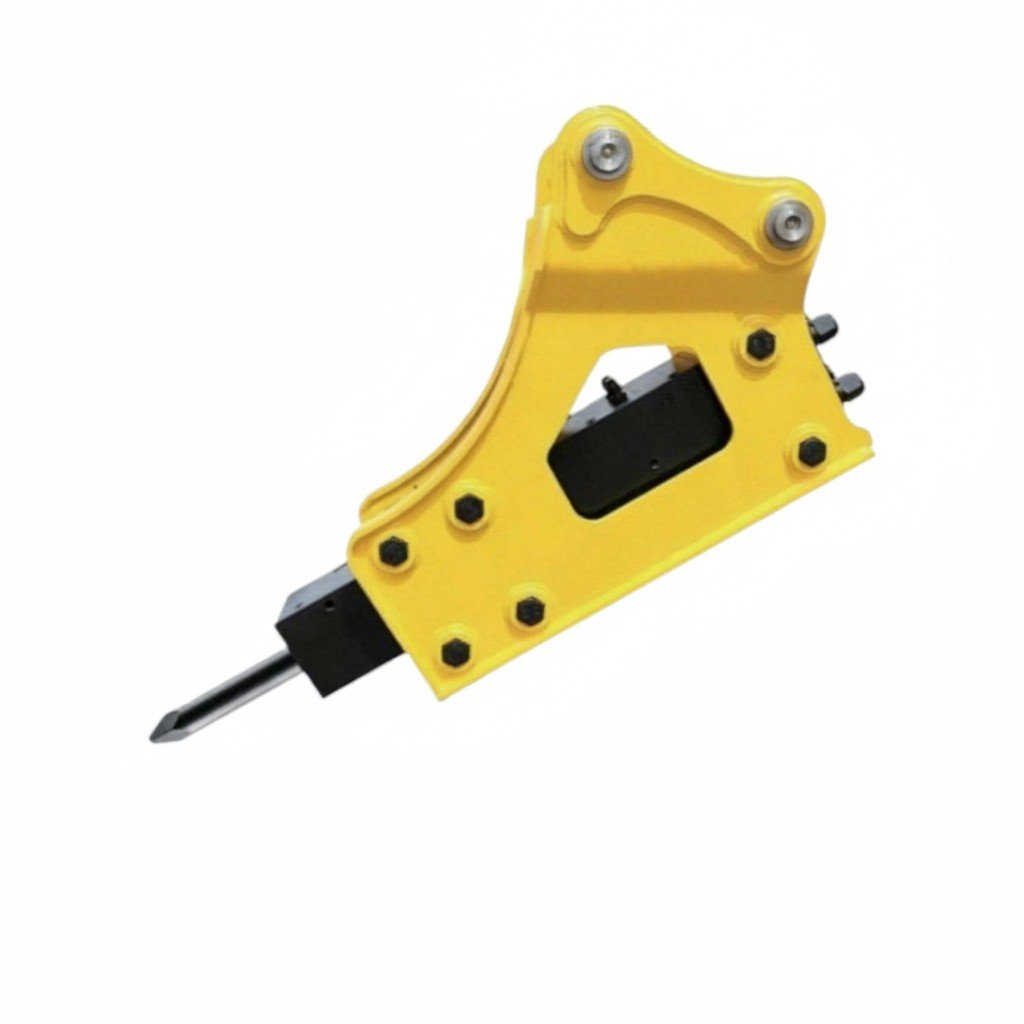

35 Hydraulic Breaker
Compact hydraulic breaker for small excavators, designed for efficient breaking of concrete, rocks and asphalt…
View Details →
600 mm Tilting Bucket
View Details →

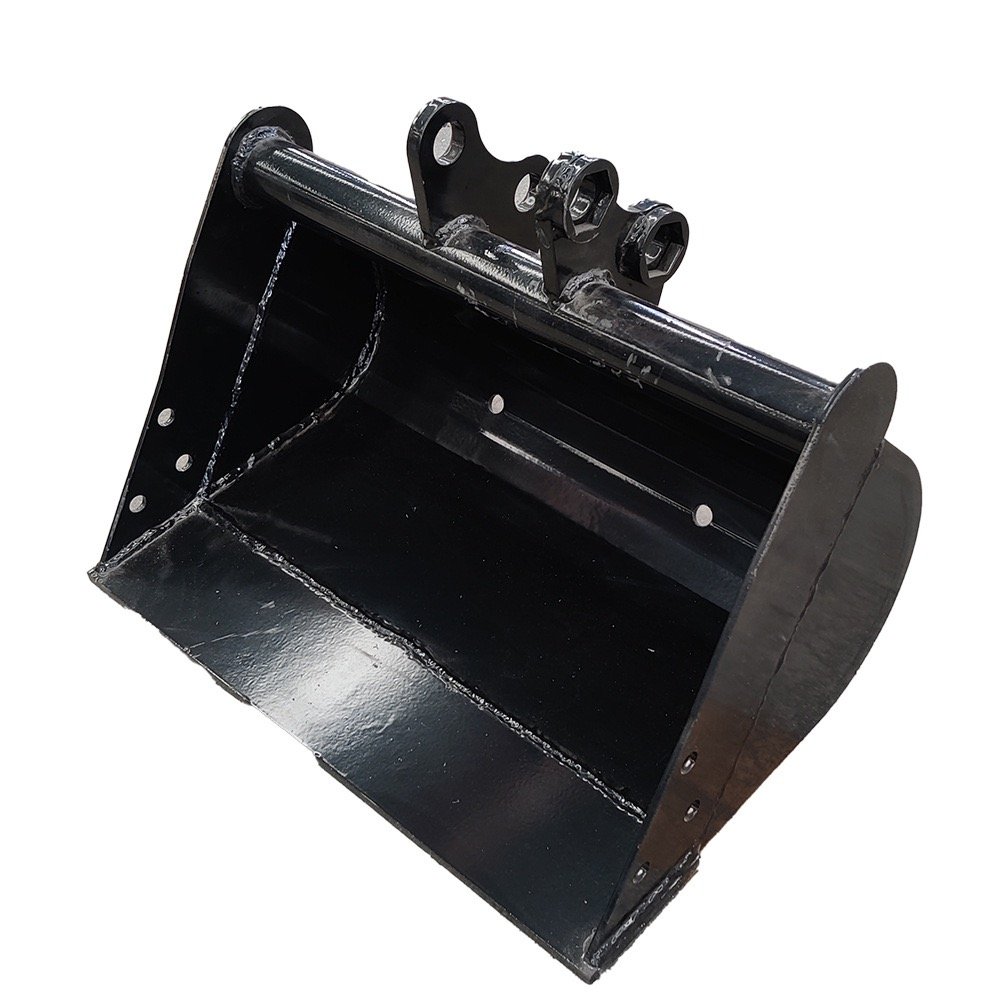

800 mm Grading Bucket
800 mm grading bucket for site leveling, backfilling and handling light materials, improving working efficiency.
View Details →

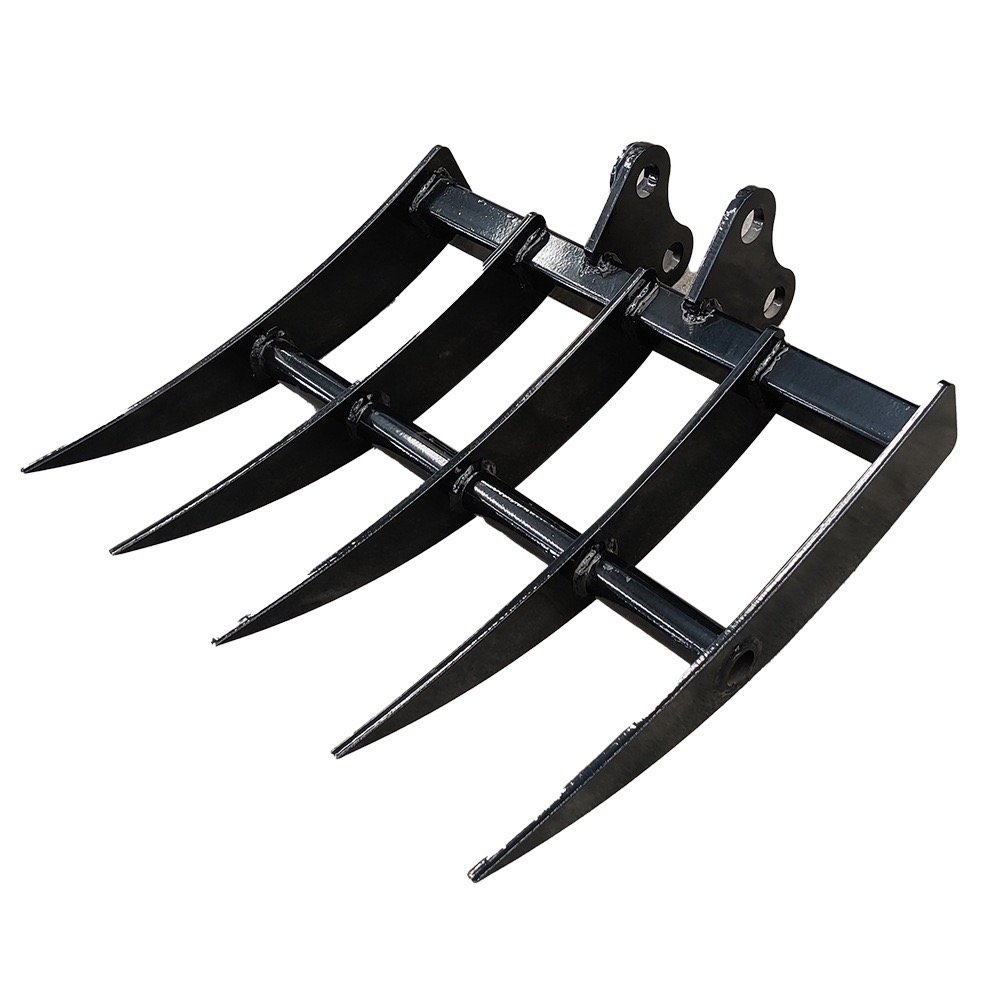

Excavator Rake
Excavator rake used for removing roots, rocks and construction debris while performing rough ground leveling.
View Details →
Hydraulic Thumb
Hydraulic thumb for mini excavators, working together with standard buckets for handling timber, rocks and…
View Details →

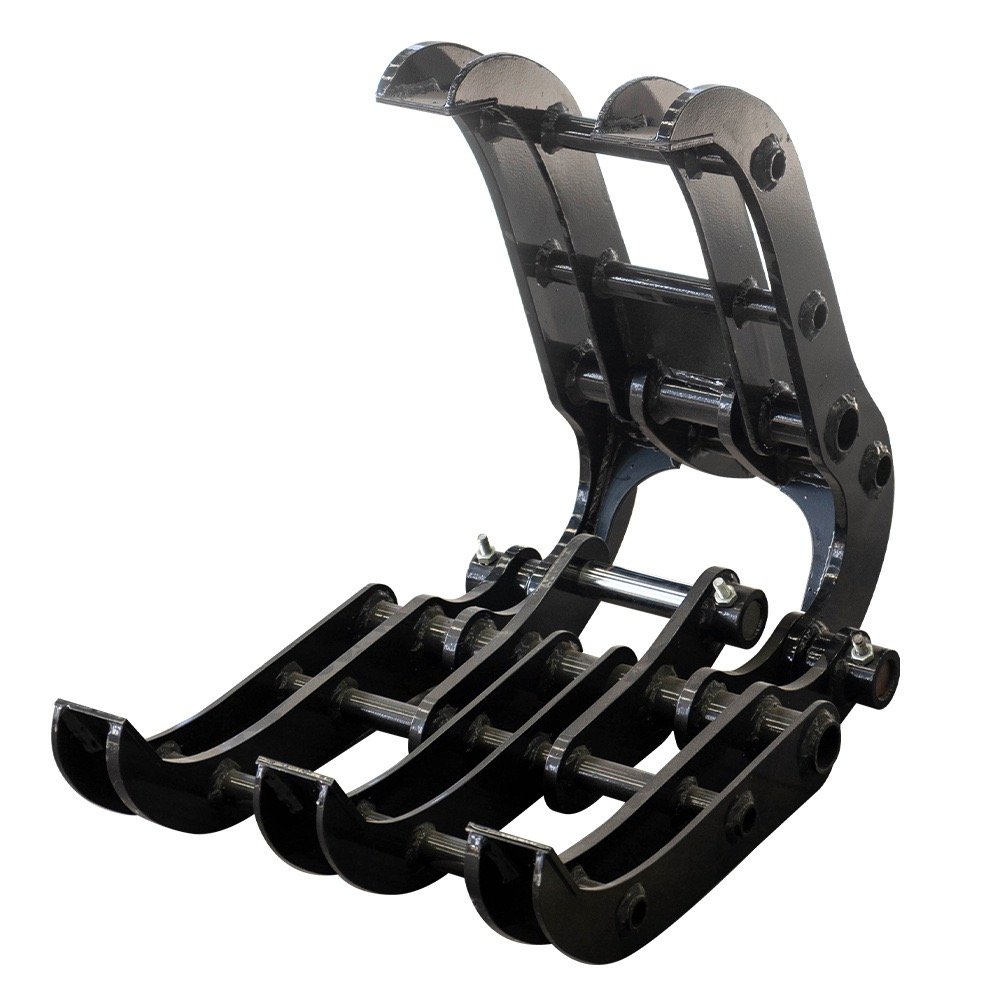

Mechanical Grapple
Mechanical grapple for loading timber, sorting scrap and handling rocks, matched to mini excavators.
View Details →

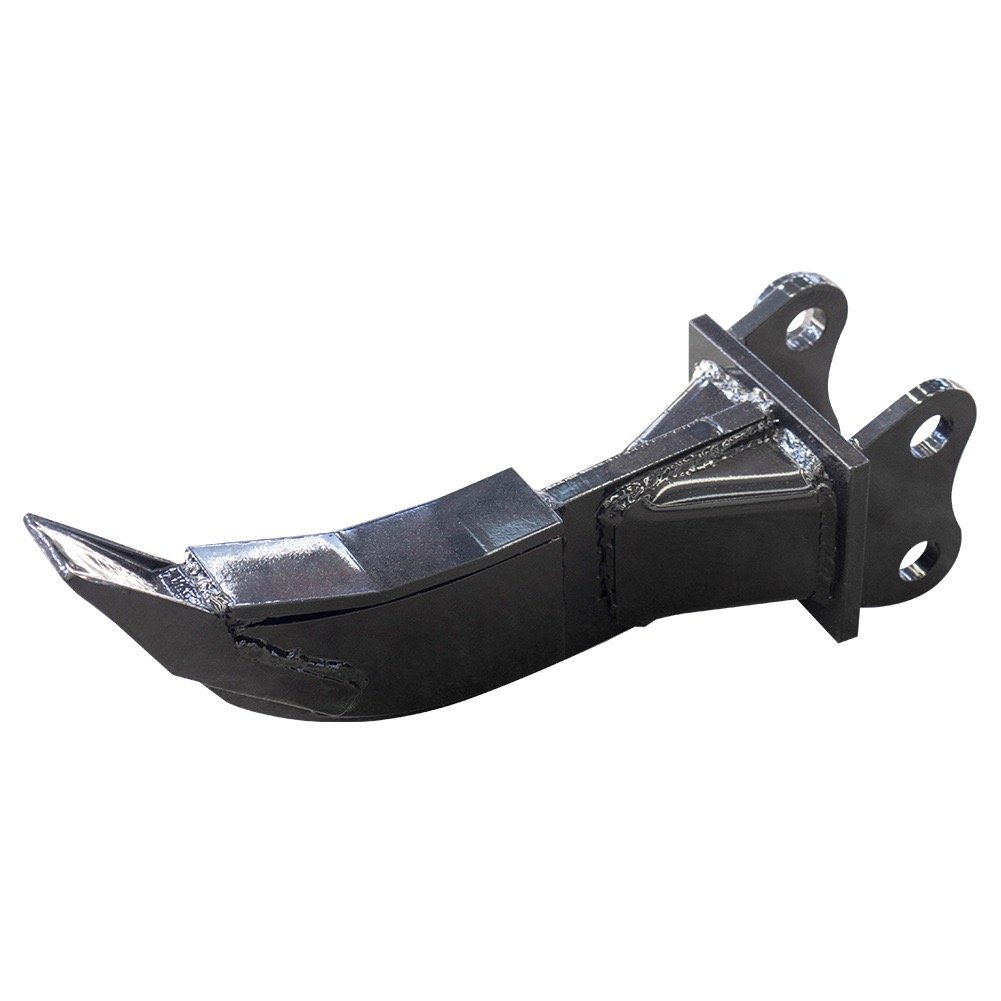

Ripper
Single-tooth ripper for breaking hard soil, frozen ground and gravel layers before excavation.
View Details →

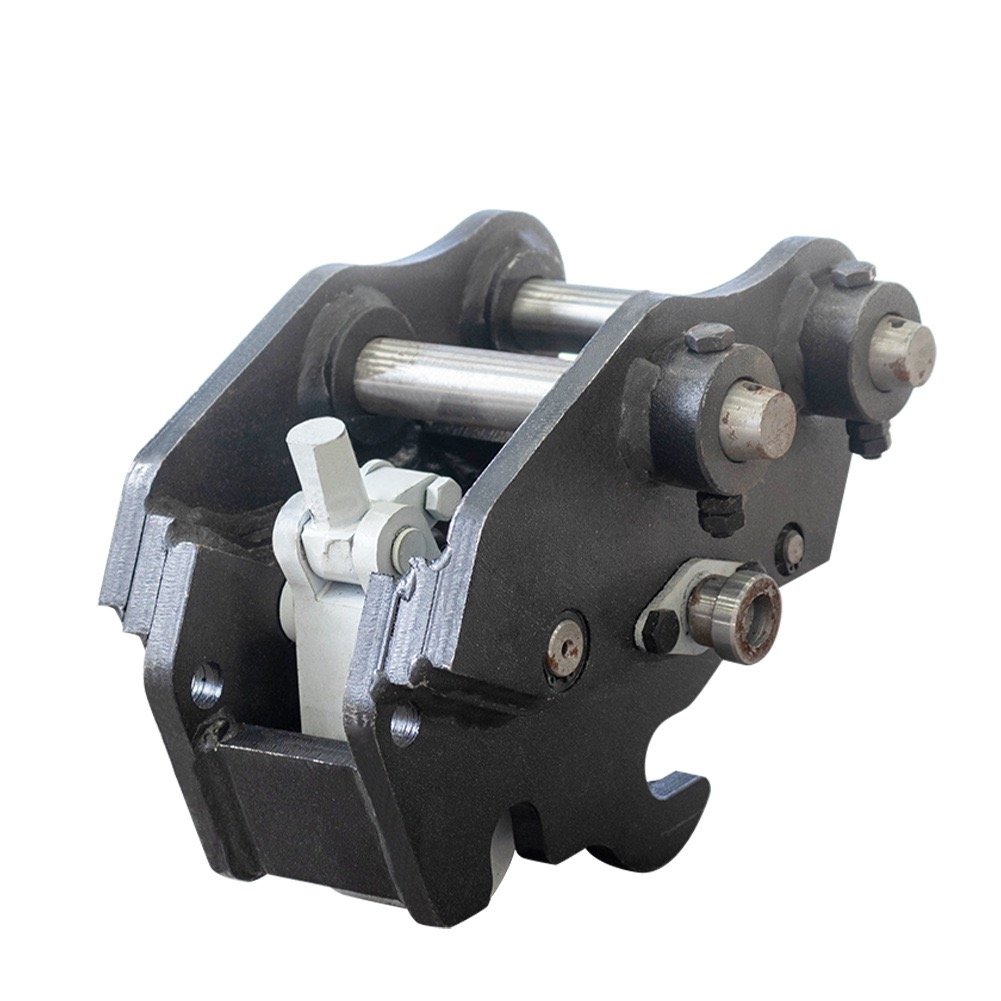

Semi-automatic Quick Coupler
Semi-automatic quick coupler that enables fast bucket and attachment changes within minutes, significantly improving job-site…
View Details →
Skeleton Bucket
View Details →
Related Machines
HK-920 Wheel Loader (Low-Profile Type)
Model: HK-920
The HK-920 wheel loader is a compact, powerful machine designed for construction sites, farms and…
View Details →
YCW-25 Mini Excavator
Model: YCW-25
The YCW-25 is a 2.5-ton mini crawler excavator built for contractors, rental fleets and farmers…
View Details →

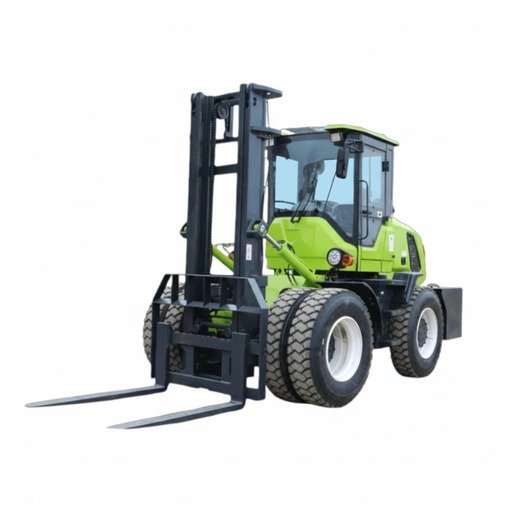

HK-6 6 Ton Rough Terrain Forklift
